Phanteks AMP GH 850W 80+ Gold ATX 3.0 PCIe 5.0 Fully Modular - Black (10 YEARS WARRANTY BY CORBELL TECHNOLOGY PTE LTD)

$203.50
/
  • Low stock - 10 items left
  • Inventory on the way

Specifications

General

Model No.

PH-P850GH_BK01

UPC Code

EU 886523510413
UK 886523510475
US 886523510536

Materials

Steel | ABS plastic

Color

Black

Dimensions

Length x Width x Height

140 x 150 x 86 mm | 5.5 x 5.9 x 3.4 in

Power Output

850 Watt

PCIe Gen5 Output

450 Watt

80 Plus

Gold

Technical Details

DC Output Ratings

Cooling Fan

120 mm Hydraulic bearing fan

Back Plate

Fully Modular

MTFB

> 100.000 hrs at 25˚C (Excluding DC fan)

Platform

Intel ATX 3.1 | PCIe Gen5.1

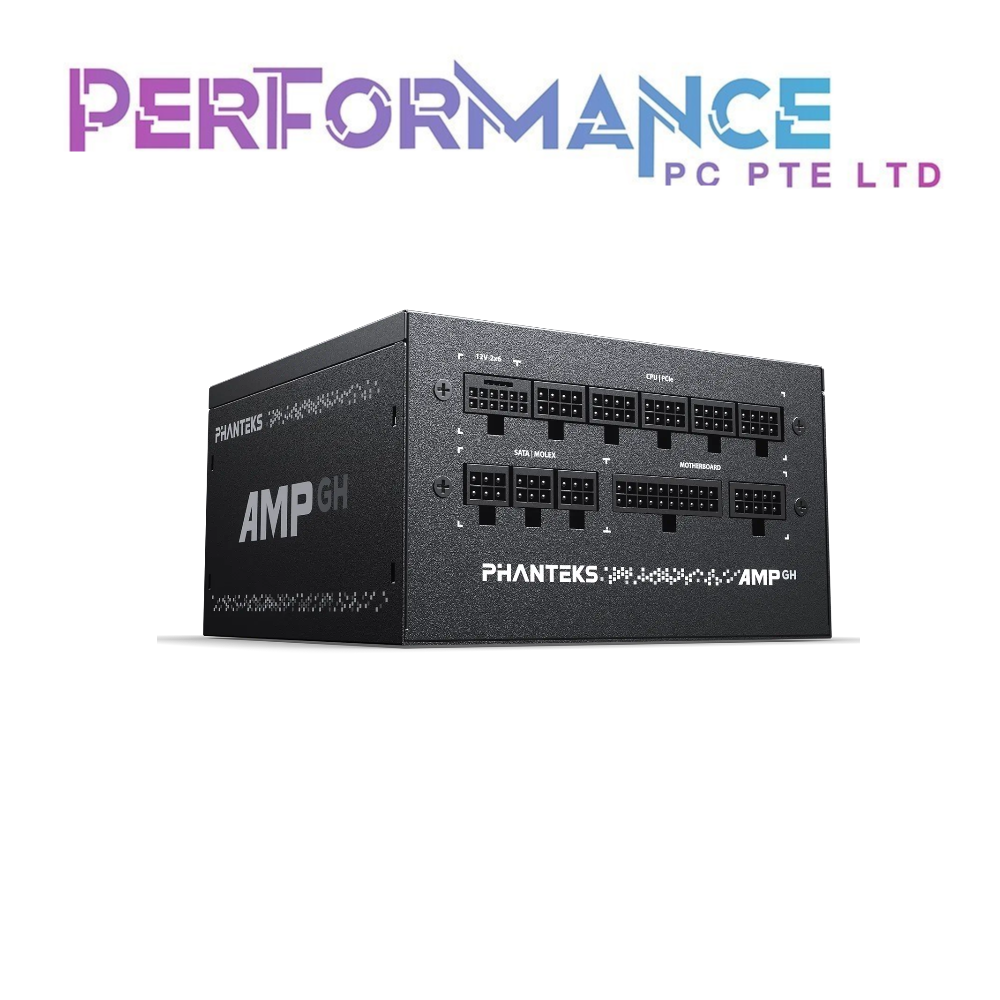

Power Supply Output Connectors

1x Mainboard → 18+10 Pin
6x CPU | PCIe → 8 Pin
4x SATA | Molex → 6 Pin
1x 12V-2×6 → PCIe

Output Protection

OPP (Overpower Protection)
OVP (Over Voltage Protection)
UVP (Under voltage protection)
SCP (Short Circuit Protection)
OCP (Over Current Protection)
OTP (Over Temperature Protection)
No-Load Protection
Reset Protection

Output Voltage 12V 5V 3.3V -12V 5VSB
Maximum Output 70A 20A 20A 0.3A 2.5A
Maximum Capacity 840W 100W 3.6W 12.5W
DC Output 850W
AC Output 100-240V ~ 10A 50-60Hz

Extra

Net Weight

1.40 kg | 3.08 lbs

Gross Weight

3.20 kg | 7.05 lbs

Warranty

8 Years limited

Learn more

Scope of Delivery

1x AMD GH power supply unit
1x C13 Power cord 1500 mm

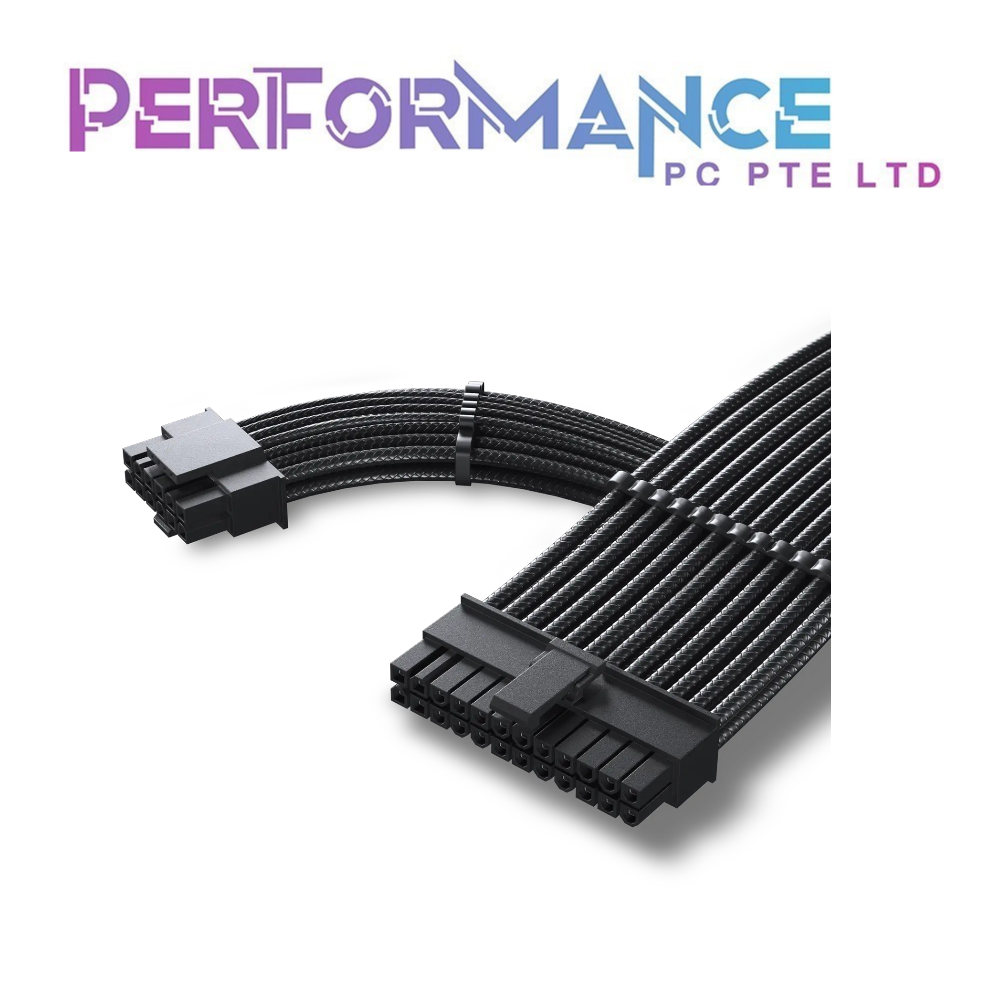

Cables

Textured

1x 18+10-Pin Mainboard 600 mm
2x 4+4-Pin CPU 700 mm
3x 6+2-Pin PCI-E 750 mm
1x 12V-2×6 720 mm
1x 6-Pin 4-SATA 400 – 120 | 120 | 120 mm
1x 6-Pin 2-SATA + 2-Molex 400 – 120 | 120 | 120 mm

Accessory Box

1x PSU bag
1x PSU tester
1x Zip tie bag
1x Screw pack
1x Velcro pack
1x Installation guide
