Name: ADATA XPG CORE REACTOR II VE 750W/850W (ATX 3.1|PCI-E GEN 5.1)(80+GOLD) FULL MODULAR (7 YEARS WARRANTY BY CORBELL TECHNOLOGY PTE LTD)
Brand: performance-pc-pte-ltd
SKU: AD 5005
Price: 141.9 SGD
Availability: InStock

ADATA XPG CORE REACTOR II VE 750W/850W (ATX 3.1|PCI-E GEN 5.1)(80+GOLD) FULL MODULAR (7 YEARS WARRANTY BY CORBELL TECHNOLOGY PTE LTD)

$141.90

PSW

750W

850W

Low stock - 10 items left
Inventory on the way

Dimensions (L x W x H)

140 x 150 x 86mm

Cybenetics Rating

GOLD

80 Plus Rating

GOLD

ATX Version

Intel ATX 12V v3.1

Protections

OVP / OPP / SCP / OCP / UVP / OTP / NLO / SIP

PFC

0.99

Input Voltage

100-240V

Input Current

850W: 12A
750W: 10A
650W: 10A

Input Frequency

47Hz-63Hz

DC Output Voltage

+5V | +3.3V | +12V | -12V | +5Vsb

Total Output

850W: +5V/+3.3V :22A, +12V:70.8A, -12V:0.3A, +5Vsb:3A
750W: +5V/+3.3V :22A, +12V:62.5A, -12V:0.3A, +5Vsb:3A
650W: +5V/+3.3V :20A, +12V:54.1A, -12V:0.3A, +5Vsb:3A

Power Excursion

850W: 1997W (*up to 235% of the PSU's rated power for 100μs)
750W: 1762W (*up to 235% of the PSU's rated power for 100μs)
650W: 1527W(*up to 235% of the PSU's rated power for 100μs)

Fan Size

120mm FDB Fan

Fan Bearing

FDB (Fluid Dynamic Bearing)

Fan Speed

2400 RPM

MTBF

100K hours at full load

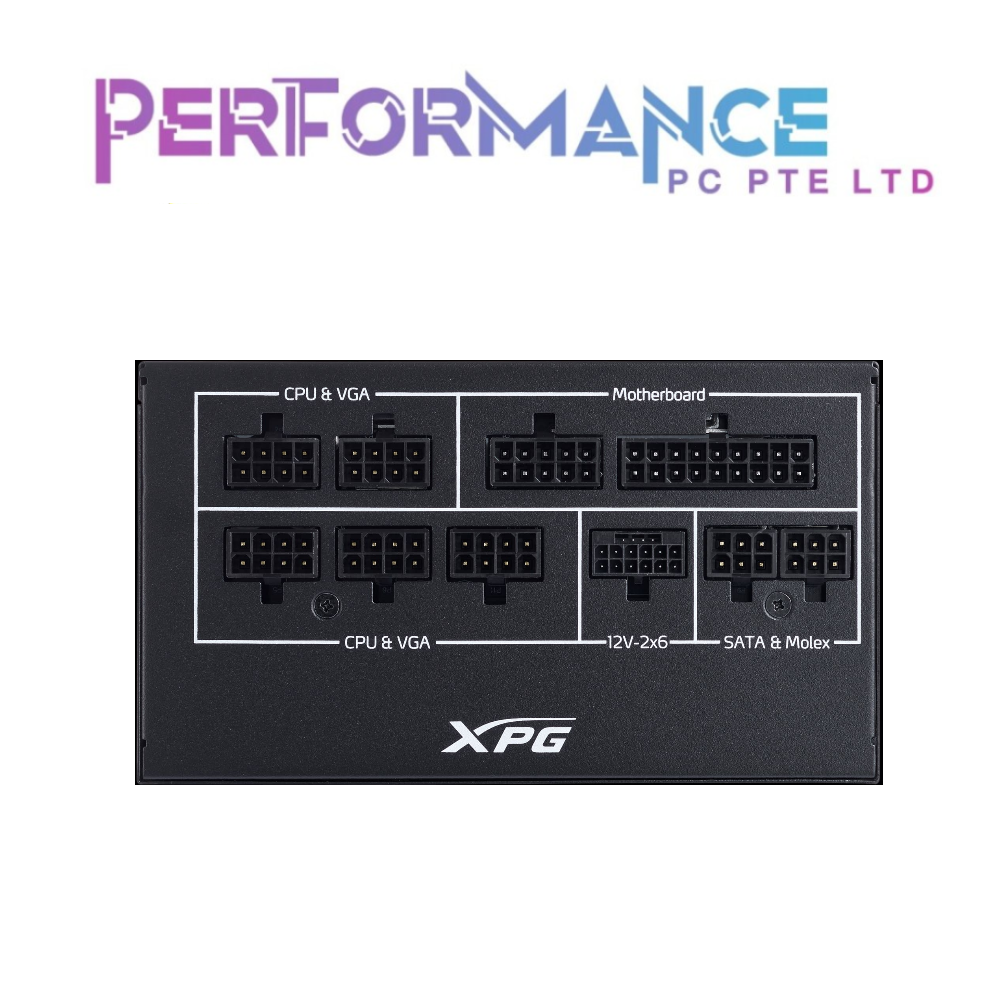

ATX 24 Pin Connector

EPS 8 Pin Connector

PCI-E 6+2 Pin Connector

850W / 750W: 3
650W: 2

Molex 4 Pin Connector

12V-2x6 (12+4) Connector (600W)

850W / 750W: 1

12V-2x6 (12+4) Connector (450W)

650W: 1

Certification

CB / CE / FCC / TUV / cTUVus / BSMI / CCC NOM / FCC IC / UKCA / TUV / TUV S-Mark / cTUVus

Weight

850W / 750W:
Product + Cables: 1450g+1350g
with Package: 3.03kg
650W:
Product + Cables: 1450g+1320g
with Package: 3kg

Warranty

7 Years
