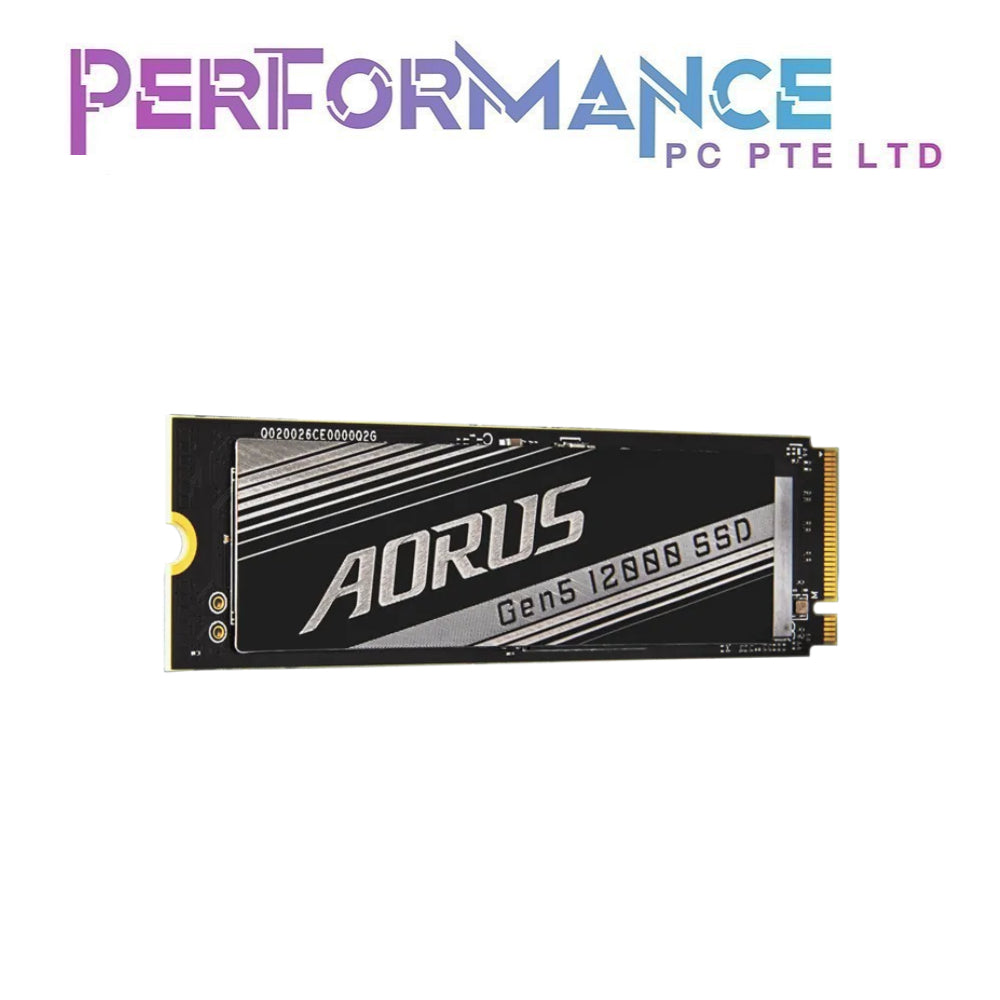

GIGABYTE AORUS Gen5 12000 SSD 1TB AG512K1TB (3 YEAR WARRANTY BY CDL TRADING PTE LTD)

nterface

PCI-Express 5.0x4, NVMe 2.0

Form Factor

M.2 2280

Total Capacity

1000GB

NAND

3D TLC NAND Flash

External DDR Cache

LPDDR4 2GB

Sequential Read speed

Up to 11,700 MB/s

Sequential Write speed

Up to 9,500MB/s

Dimension

SSD without Heatsink: 80 x 22 x 3.5mm

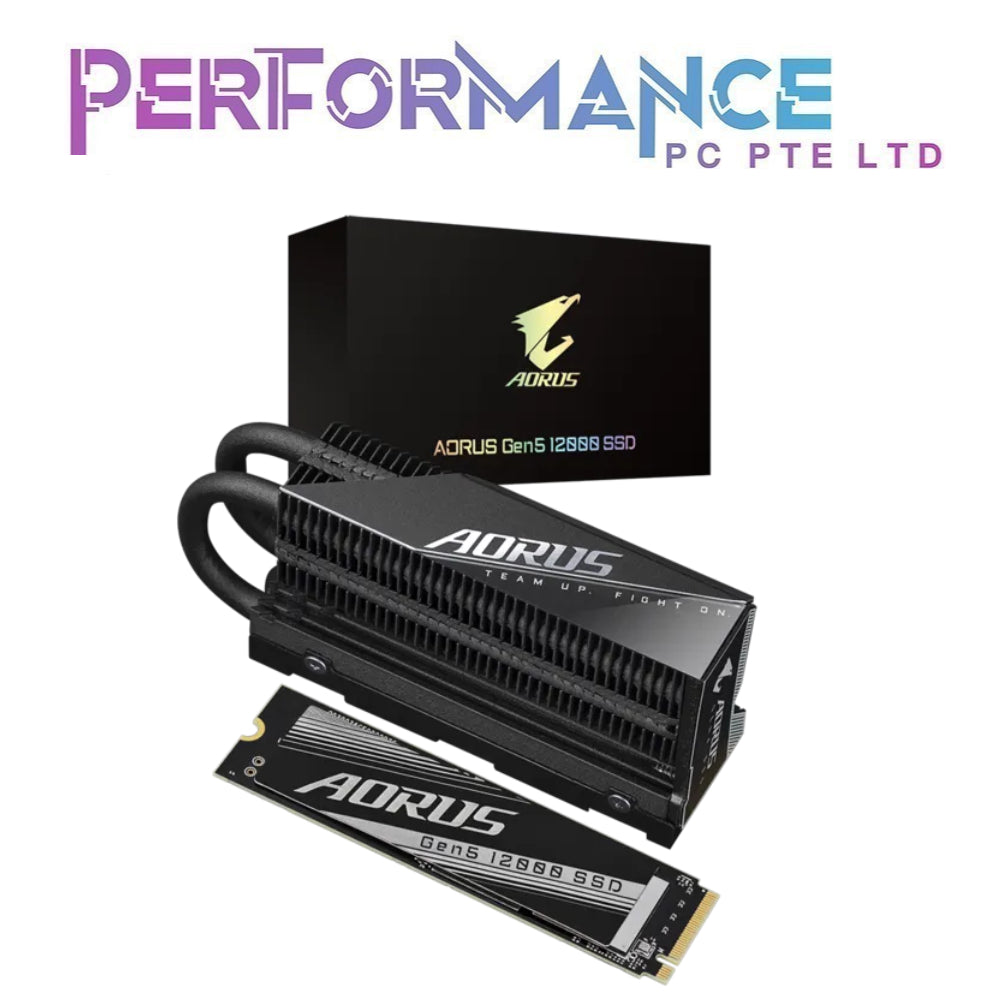

SSD with Heatsink: 92 x 23.5 x 44.7 mm

Please refer to the file to check the M.2 Thermal Guard XTREME Incompatible List

Mean time between failure (MTBF)

1.6 million hours

Max. Operating Power

11W

Power Consumption (Idle, PS3)

<144mW

Power Consumption(PS4, L1.2)

<85mW

Temperature (Operating)

0°C to 70°C

Temperature (Storage)

-40°C to 85°C

Warranty

1. Limited 5-years or 700TBW.

2. Limited warranty based on 5 years or 700TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. )

*TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail.

3. When the usage of an NVME SSD as indicated by the "Percentage Used" (SMART ID: 05) in SMART page of "GIGABYTE SSD toolbox" reaches 100 means out of warranty. (A new unused product will show the number of 0)

Note

• Test system configuration: configuration may vary by models, we will choose the latest platform for verification.

• Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.

• Speeds based on internal testing. Actual performance may vary.

• 1GB = 1 billion bytes. Actual useable capacity may vary.

* To keep AORUS Gen5 12000 SSD from overheating, please adopt the motherboard build-in heatsink or Thermal Guard Xtreme heatsink to prevent throttling.
