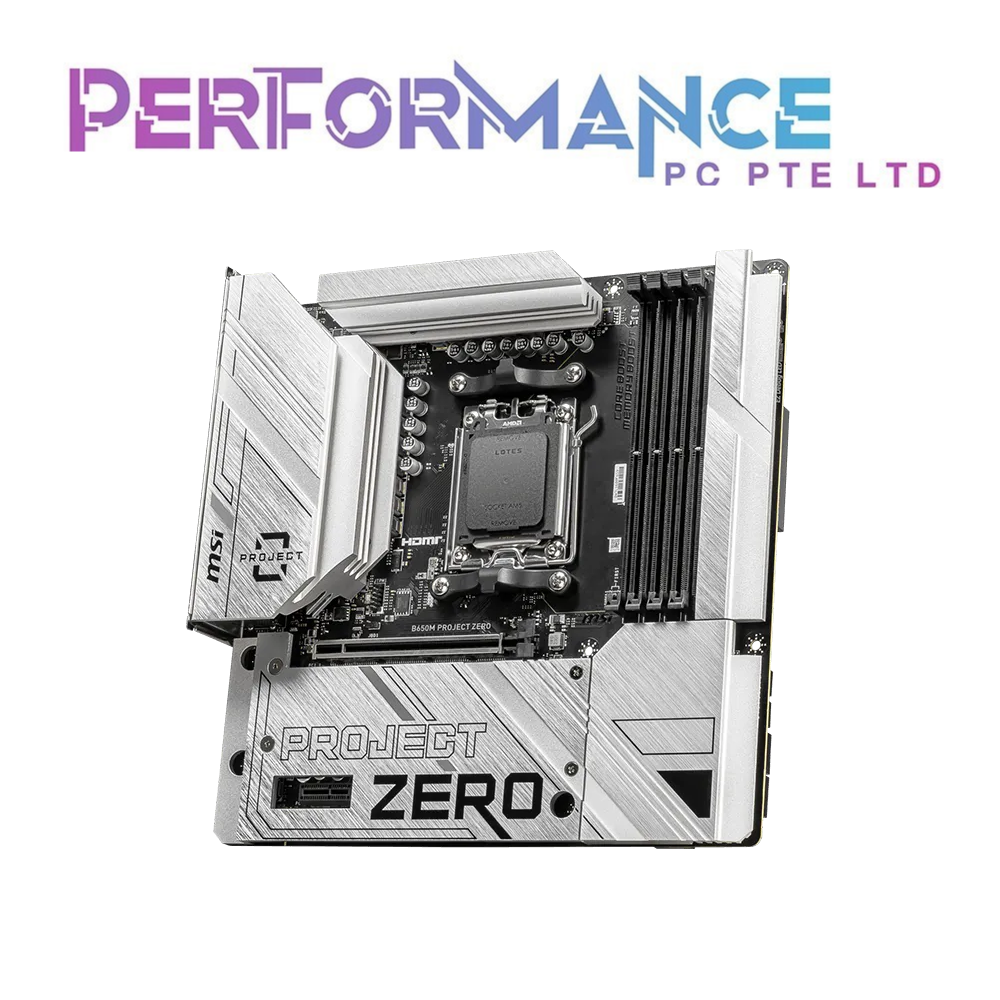

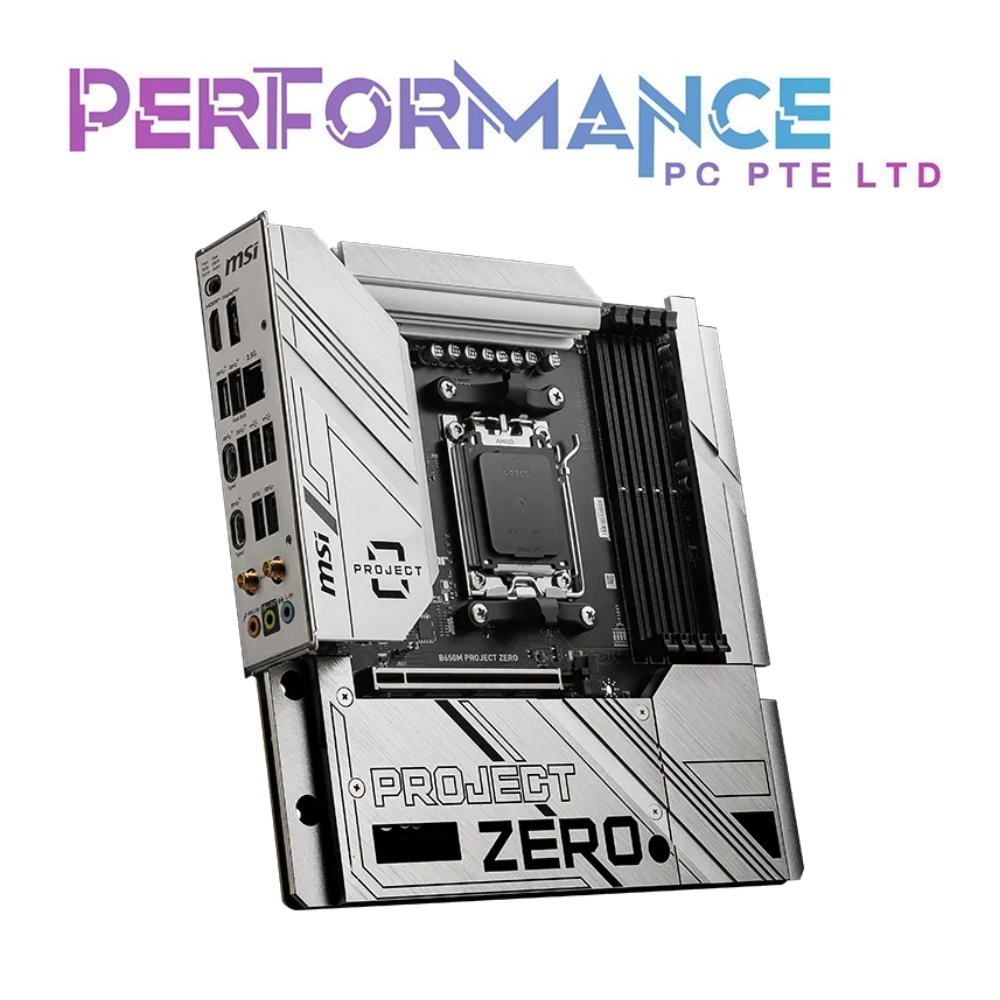

MSI B650M PROJECT ZERO AM5 m-ATX MOTHERBOARD (3 YEARS WARRANTY BY CORBELL TECHNOLOGY PTE LTD)

We do not offer exchanges or refunds once the package has been opened !!

We do not offer exchanges or refunds once the package has been opened !!

We do not offer exchanges or refunds once the package has been opened !!

Chipset	AMD B650
CPU	Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Memory	4x DDR5, Maximum Memory Capacity 256GB Memory Support DDR5 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 7600+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5400+ MHz
Onboard Graphics	1x HDMI™ Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	1x PCI-E x16 slot • Supports x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports x4 (For Ryzen™ 8500/ 8300 Series processors) 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio Supports up to 32-Bit/384 kHz playback on front panel
Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G • The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor
RAID	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices* Supports RAID 0 and RAID 1 for M.2 NVMe storage devices * SATA_A1_A2 do not support RAID function.
USB	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear)
LAN	Realtek® RTL8125BG 2.5Gbps LAN
Internal IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3** * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
LED FEATURE	4x EZ Debug LED

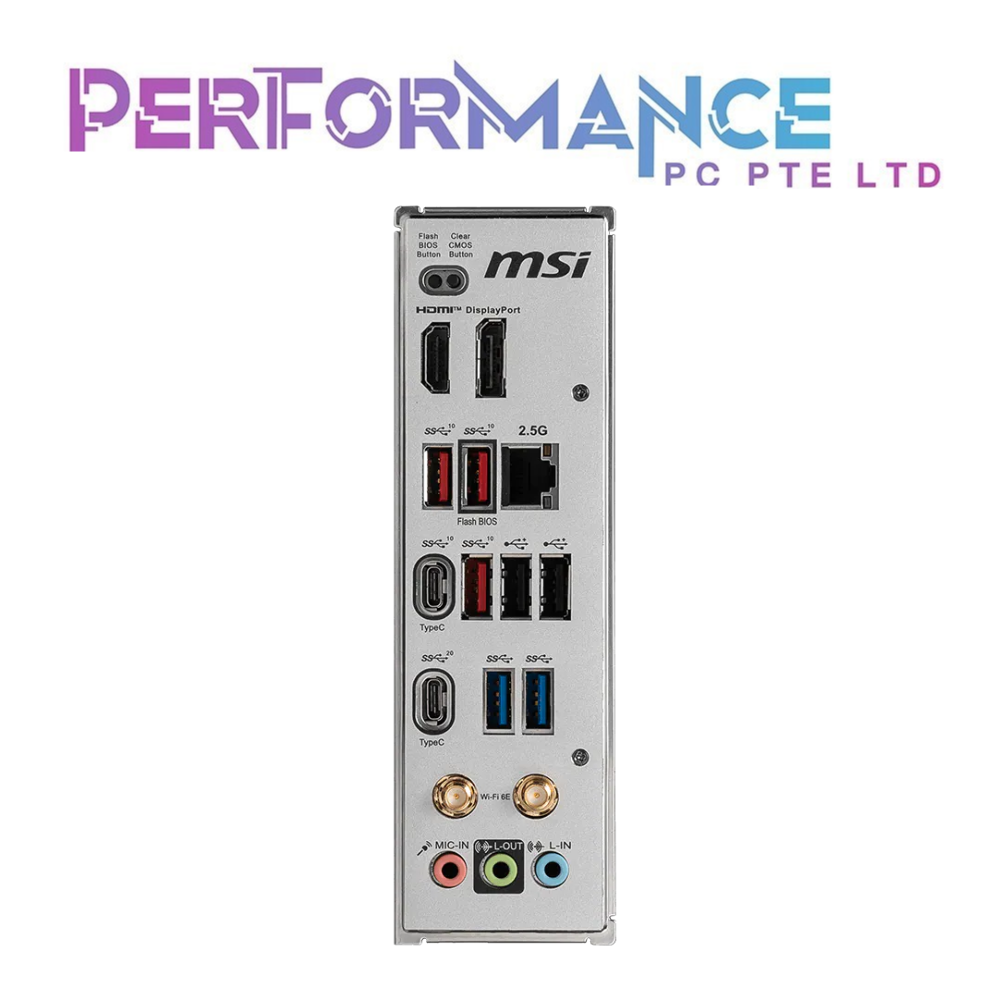

BACK PANEL PORTS	DisplayPort 2.5G LAN USB 2.0 USB 5Gbps (Type-A) Wi-Fi / Bluetooth Audio connectors Flash BIOS Button Clear CMOS Button HDMI™ USB 10Gbps (Type-A) USB 10Gbps (Type-C) USB 20Gbps (Type-C)
OPERATING SYSTEM	Support for Windows® 11 64-bit, Windows® 10 64-bit
BOX CONTENT

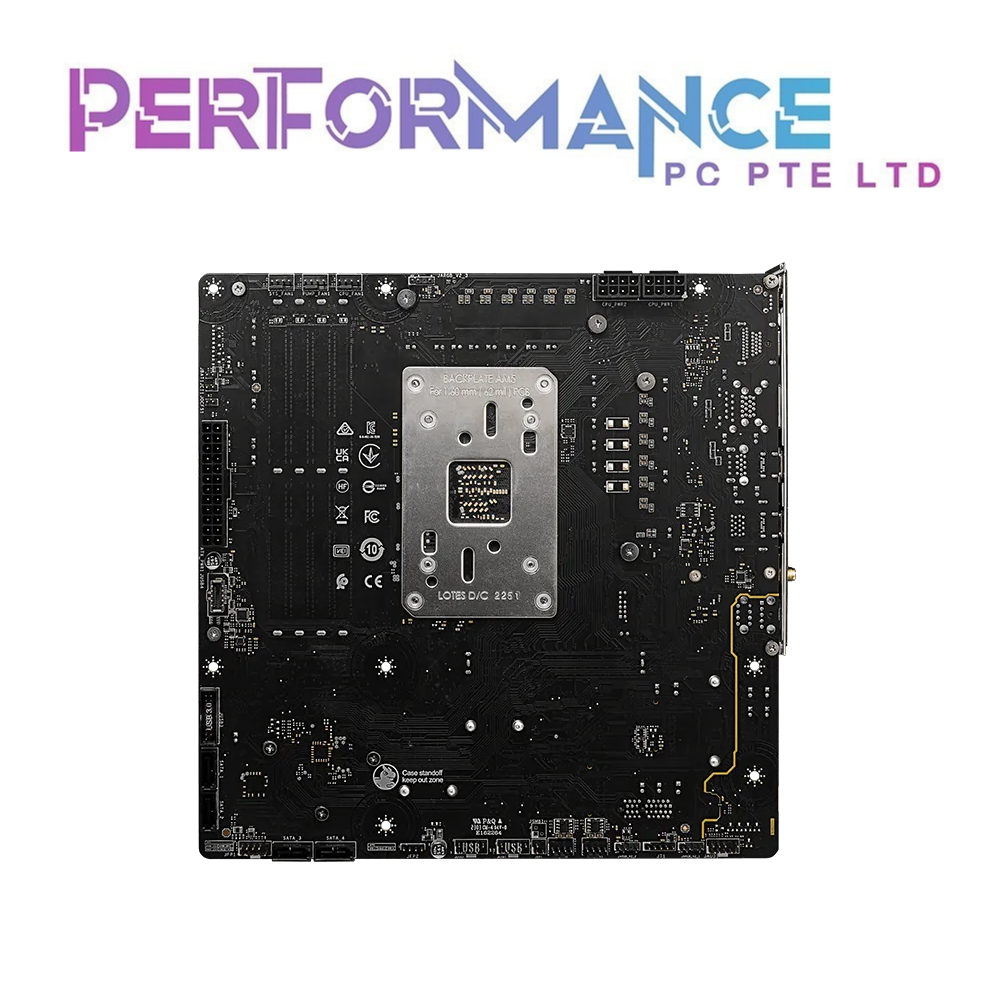

PCB Info	Back-connect mATX 243.84mmx243.84mm
