MSI MPG Z790I Z790 I EDGE WIFI Gaming Motherboard (3 YEARS WARRANTY BY CORBELL TECHNOLOGY PTE LTD)
MSI MPG Z790I Z790 I EDGE WIFI Gaming Motherboard (3 YEARS WARRANTY BY CORBELL TECHNOLOGY PTE LTD)
MSI MPG Z790I Z790 I EDGE WIFI Gaming Motherboard (3 YEARS WARRANTY BY CORBELL TECHNOLOGY PTE LTD)

MSI MPG Z790I Z790 I EDGE WIFI Gaming Motherboard (3 YEARS WARRANTY BY CORBELL TECHNOLOGY PTE LTD)

Regular price$635.80
/

  • In stock, ready to ship
  • Inventory on the way
CHIPSET INTEL Z790
CPU SUPPORT Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA 1700
MEMORY 2x DDR5, Maximum Memory Capacity 64GB
Memory Support 8000+(OC)/7800(OC)/7600(OC)/7400(OC)/7200 (OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC)/4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 8000+ MHz
• 1DPC 2R Max speed up to 7200+ MHz

Supports Intel® XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
ONBOARD GRAPHICS 1x HDMI™
1x DisplayPort
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT 1x PCI-E x16 slot
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
STORAGE 3x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
M.2_2 (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices
4x SATA 6G port
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 for M.2 NVMe storage devices
USB 2x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
2x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2x2 Type C (Rear)
1x USB 3.2 Gen2x2 Type C (Front)
LAN Intel® 2.5Gbps LAN
WIRELESS / BLUETOOTH Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.2**, FIPS, FISMA

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.
** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.
"
AUDIO Realtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
INTERNAL I/O 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
1x System Fan
1x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Addressable V2 RGB LED connector (JARGB_V2)
1x TPM pin header(Support TPM 2.0)
2x USB 2.0
2x USB 3.2 Gen1 Type A
1x USB 3.2 Gen 2x2 Type C
LED FEATURE 4x EZ Debug LED

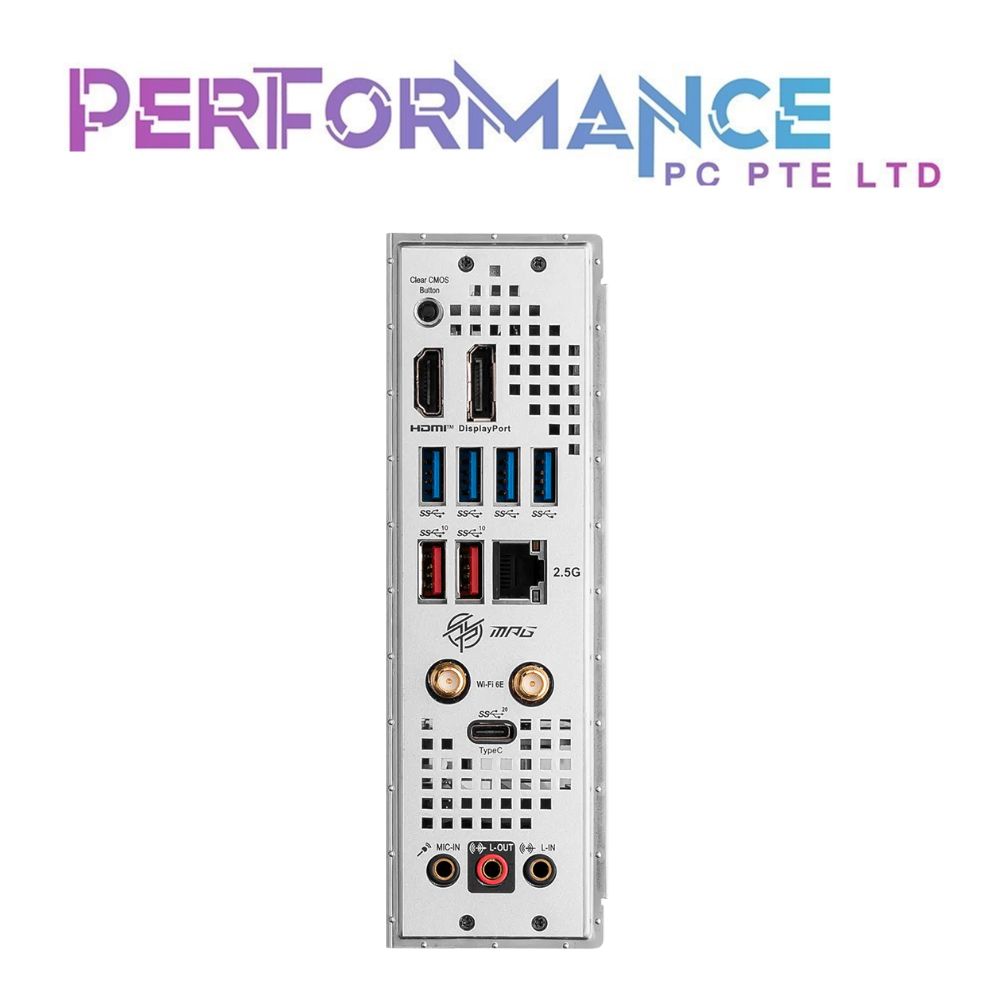

BACK PANEL PORTS
  1. Display Port
  2. 2.5G LAN
  3. USB 3.2 Gen 2x2 20Gbps (Type-C)
  4. Audio Connectors
  5. Clear CMOS
  6. HDMI™
  7. USB 3.2 Gen 1 5Gbps (Type-A)
  8. USB 3.2 Gen 2 10Gbps (Type-A)
  9. Wi-Fi / Bluetooth

OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB DIMENSION Mini-ITX
170mmx170mm
