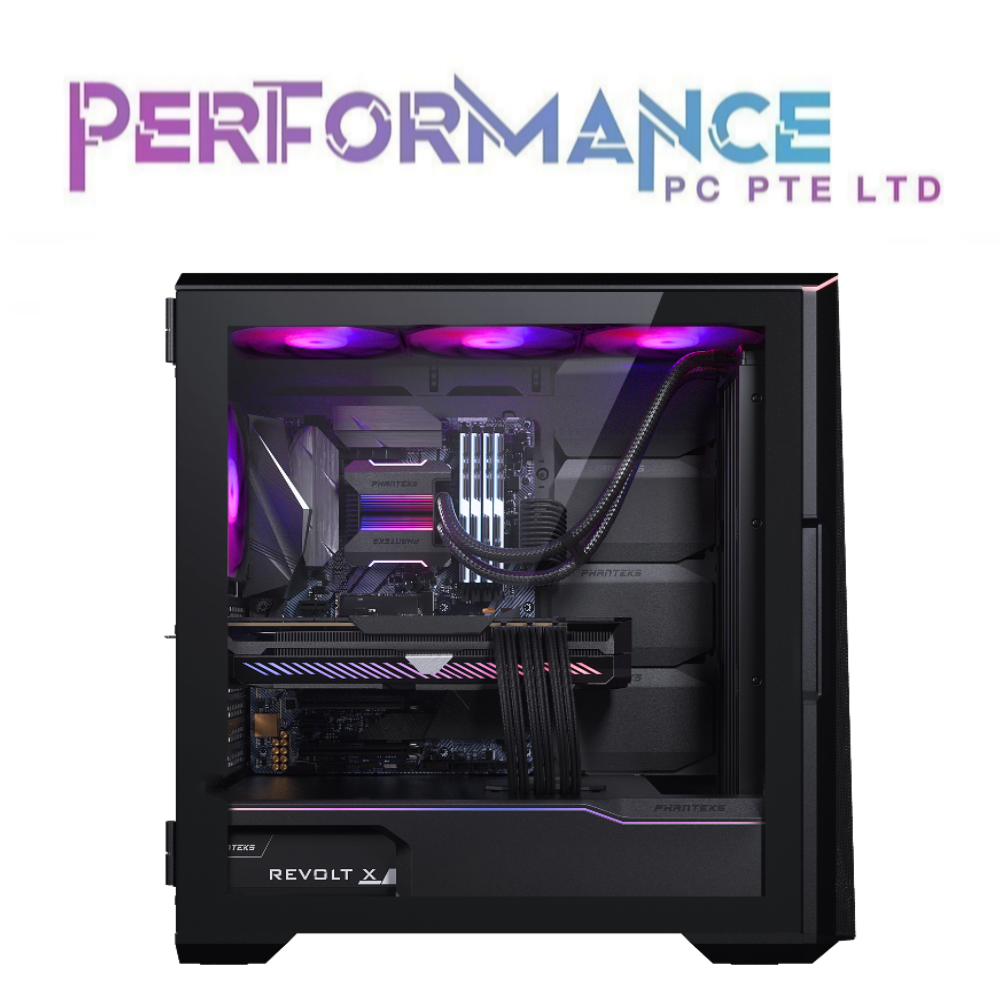

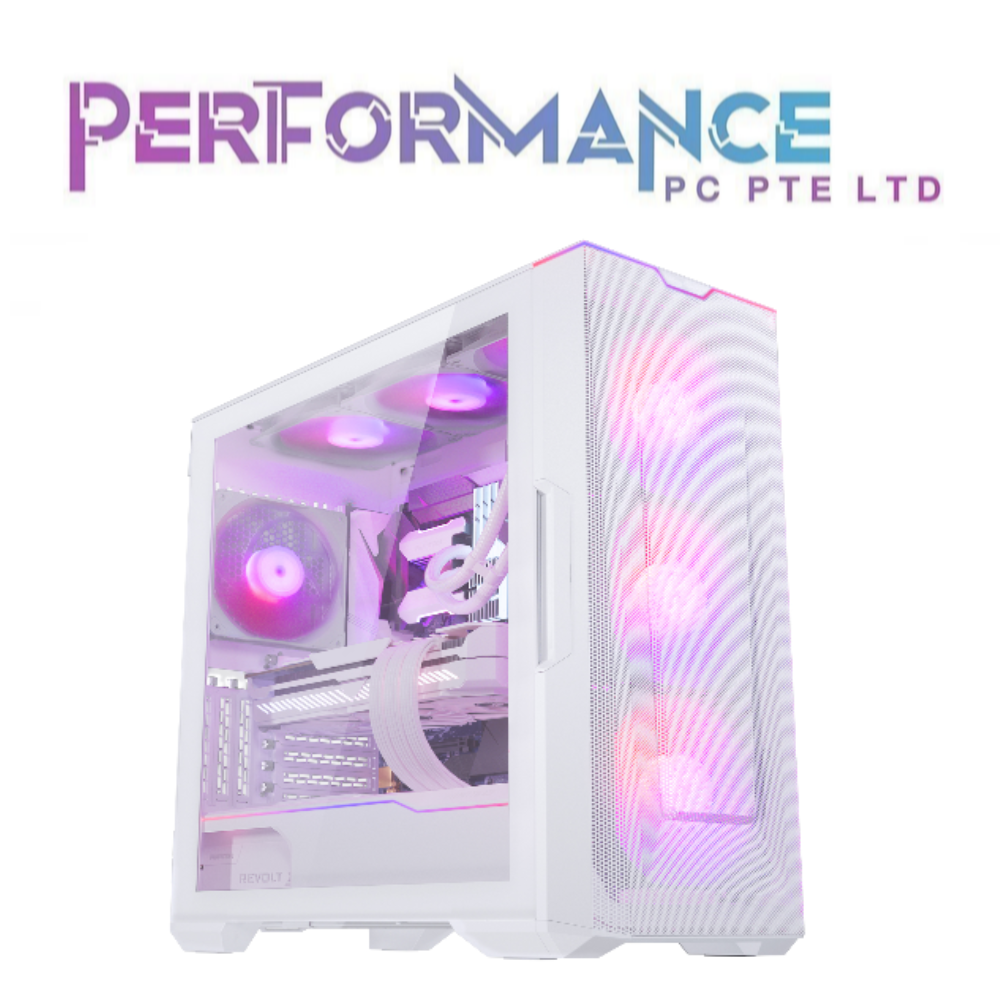

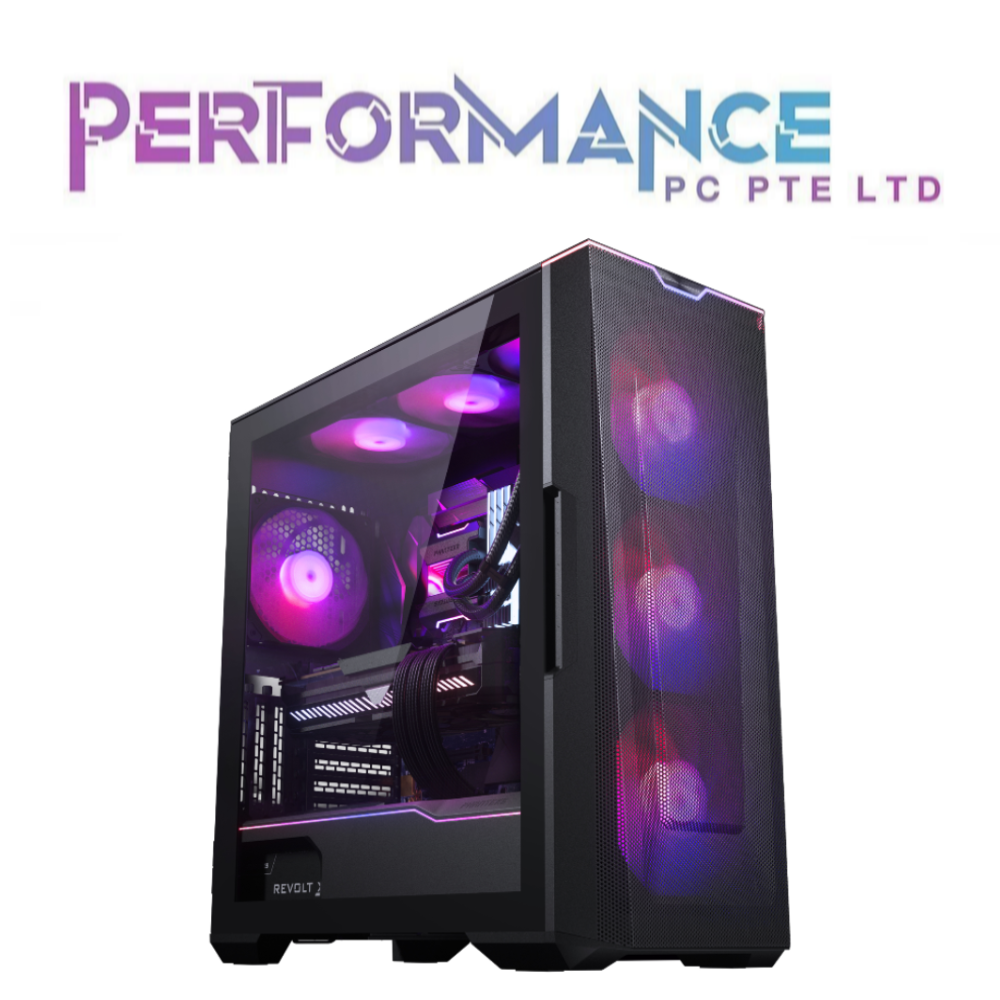

Name: Phanteks Eclipse G500A ATX Case, Tempered Glass, 3x DRGB 140mm fans White (3 YEARS WARRANTY BY CORBELL TECHNLOGY PTE LTD)
Brand: performance-pc-pte-ltd
Price: 262.9 SGD
Availability: InStock

$262.90

Low stock - 2 items left
Inventory on the way

Specifications

General

Model No.

PH-EC500GA_DMW01A

UPC Code

886523302629

Case Dimensions

240 mm x 500 mm x 515 mm | 9.45 in x 19.69 in x 20.28 in

Form Factor

Mid-Tower

Mainboard Support

E-ATX | ATX | Micro-ATX | Mini-ITX

Materials

Steel chassis | Tempered glass

Side Window

Yes

PCI Slots

7

Vertical GPU Support

3-slots

Riser Cable sold separately

Internal 2.5″ Bay

9

+ 10x 3.5″ HDD

Internal 3.5″ Bay

10 | 2 Included

+ 9x 2.5″ SSD

Front I/O

1x USB-C 3.2 Gen 2
2x USB 3.0
Microphone | Headphone
D-RGB Mode Button
D-RGB Color Button
Power Button

Fans 120 | 140

Total Fans

7x | 7x

Top

3x | 3x

Front

3x | 3x (pre-installed)

Side

– | –

Rear

1x | 1x

Bottom

– | –

Radiators 120 | 140

Top

Max. 360 | 280

Front

Max. 360 | 420

Side

– | –

Rear

120 | –

Bottom

– | –

Clearance

CPU Cooler

Height

185 mm | 7.28 in

GPU

Length

435 mm | 17.12 in

GPU

Height

–

Power Supply

Length

195 mm | 7.67 in

Top Radiator

Length x Width

? x 70 mm | ? x 2.75 in

Front Radiator

Length x Width

142 x 475 mm | 5.59 x 18.70 in

Side Radiator

Length x Width

–

Bottom Radiator

Length x Width

–

Extra

Net Weight

10.68 kg | 23.54 lbs

Gross Weight

12.85 kg | 28.32 lbs

Warranty

5 Years limited

Learn more

Scope of Delivery

1x Eclipse G500A chassis
3x SSD bracket
2x HDD bracket
3x M25-140 D-RGB fan

Accessory Box

6x Zip ties
1x GPU anti-sag bracket
1x Vertical GPU mount

Screws

22x Mainboard | SSD screws
7x Power supply screws
8x HDD locking screws
12x Thumb screws
8x Fan screws
8x Case screws
1x Motherboard stand-off
3x Riser cable screws
1x Stand-off removal tool
