Name: Phanteks Evolv X2 Matrix LED TG DRGB Case Black/White (5 Years WARRANTY BY CORBELL TECHNOLOGIES PTE LTD)
Brand: performance-pc-pte-ltd
SKU: PH-ES524XM_DBK01
Price: 346.5 SGD
Availability: InStock

Phanteks Evolv X2 Matrix LED TG DRGB Case Black/White (5 Years WARRANTY BY CORBELL TECHNOLOGIES PTE LTD)

$346.50

Color

Black

White

Low stock - 5 items left
Inventory on the way

Specifications

General

Model No.

PH-ES524XM_DBK01/PH-ES524XM_DMW01

UPC Code

886523304067

Case Dimensions

454 x 228 x 588 mm | 17.87 x 8.98 x 23.15 in

From Factor

Mid-Tower

Mainboard Support

*E-ATX | ATX | Micro-ATX | Mini-ITX

*Up to 280 mm wide

Rear ATX Mainboard Support

MSI Project Zero | ASUS BTF | Gigabyte Project Stealth

Materials

Steel chassis | Aluminium panels | Tempered glass window | ABS plastic | Polyester

Color

Brushed black aluminium

Expansion Slots

Vertical GPU Support

Yes

Riser cable sold separately

Internal 2.5″ Positions

+ 1x 3.5″ HDD

Internal 3.5″ Positions

+ 3x 2.5″ SSD

Front I/O

2x USB 3.0
1x USB-C 3.2 Gen2x2
1x Microphone | Headphone combo
Power button
Reset button

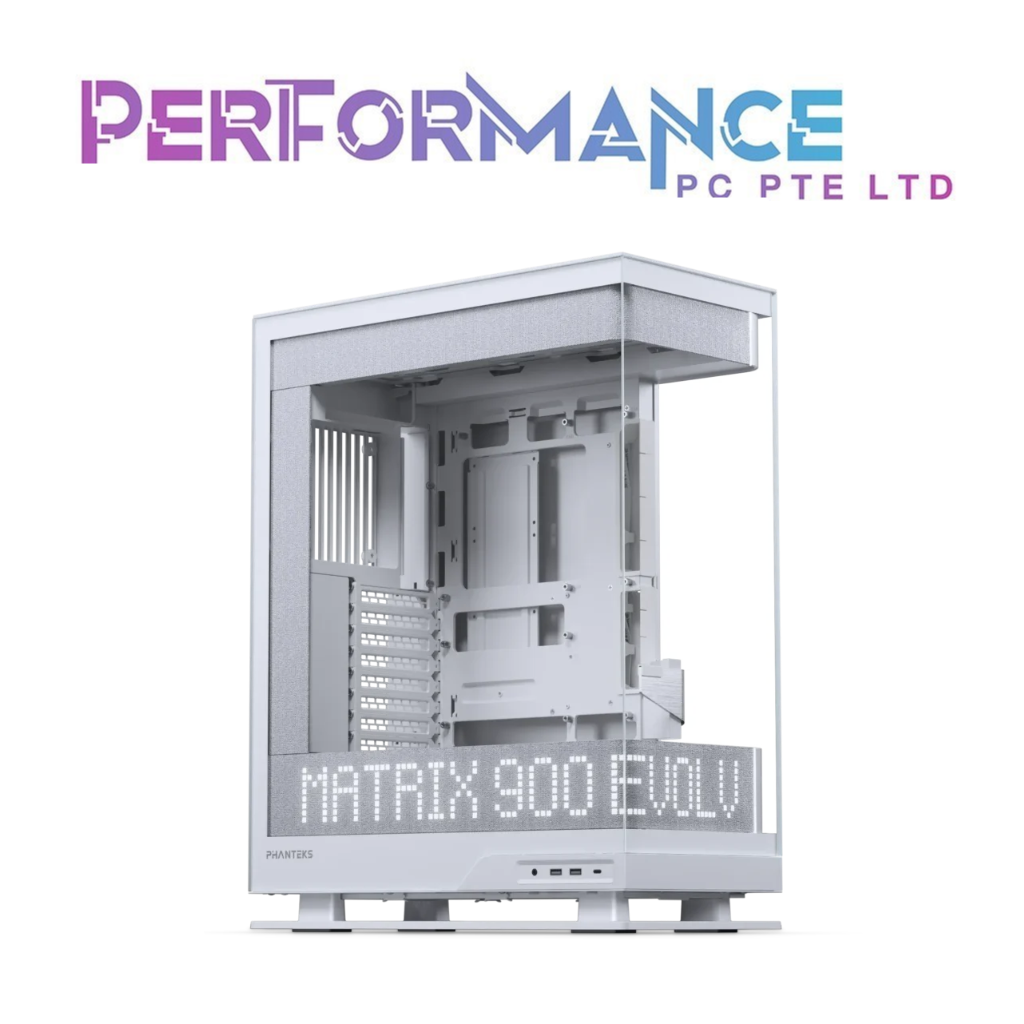

Matrix Display

LED Amount

900

Power Input

5V | 5.3A

Fabric Material

Polyester

Connectors

Mainboard USB 2.0 header 500 mm
SATA 500 mm

Fans 120 | 140

Total Fans

7 | –

Top

3 | –

Front

– | –

Side

– | –

Rear

1 | –

Bottom

3 | –

Radiator 120 | 140

Top

Max. 360 | –

Front

– | –

Rear

– | –

Bottom

– | –

Clearance

CPU Cooler

Height

170 mm | 6.69 in

GPU

Length

380 mm | 14.96 in

GPU

Width

170 mm | 6.69 in

Power Supply

250 mm | 9.84 in

Top 360 Radiator

Length x Width x Height

415 x 130 x 32 mm | 16.34 x 5.12 x 1.25 in

Extra

Net Weight

14.2 kg | 31.3 lbs

Gross Weight

16.5 kg | 36.4 lbs

Warranty

5 Years limited

Learn more

Scope of Delivery

1x Evolv X2 chassis
1x Storage bracket Pre-installed
1x SSD bracket Pre-installed

Accessory Box

30x Mainboard | SSD screws
4x Power supply screws
8x HDD screws
4x Vertical-GPU bracket screws
1x Mainboard stand-off

Screws

6x Zip ties
1x Stand-off removal tool
1x D-RGB mainboard adapter 500 mm
1x Microfiber cloth
